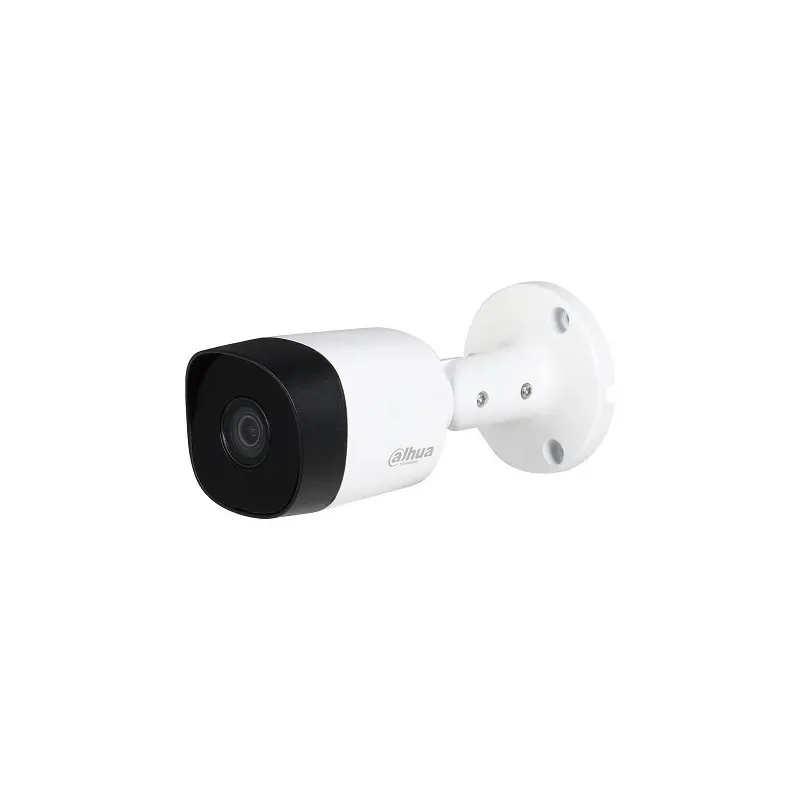

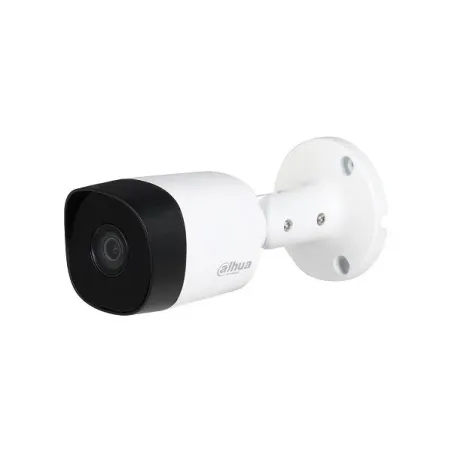

| Camera |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s |
| Min. Illumination | 0.02 lux@F2.0 (Color, 30 IRE)
0.002 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 20 m (65.62 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 2 (IR light) |
| Angle Adjustment | Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360° |
| Lens |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H: 100°; V: 54°; D: 117°
3.6 mm: H:80°; V: 43°; D: 94°
6 mm: H: 43°; V: 24°; D: 50° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.8 m (2.62 ft)
6 mm: 2.8 m (9.19 ft) |
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 44.7 m
(146.65 ft) | 17.9 m
(58.73 ft) | 8.9 m
(29.20 ft) | 4.5 m
(14.76 ft) |
| 3.6 mm | 55.0 m
(180.45 ft) | 22.0 m
(72.18 ft) | 11.0 m
(36.09 ft) | 5.5 m
(18.04 ft) |
| 6 mm | 102.9 m
(337.60 ft) | 41.1 m
(134.84 ft) | 20.6 m
(67.59 ft) | 10.3 m
(33.79 ft) |
| Video |
| Video Frame Rate | CVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
AHD:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
TVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
CVBS:
PAL: 960H;
NTSC: 960H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; DWDR |
| WDR | DWDR |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 2D NR |
| Illumination Mode | Smart IR |
| Certification |
| Certifications | CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B |
| Port |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one
BNC port |
| Power |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max 2.8 W (12 VDC, IR on) |
| Environment |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure |
| Casing Material | Metal |
| Product Dimensions | 157.6 mm × 70.1 mm × 70.1 mm (6.21" × 2.76" × 2.76") |
| Net Weight | 0.25 kg (0.55 lb) |
| Gross Weight | 0.33 kg (0.73 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
