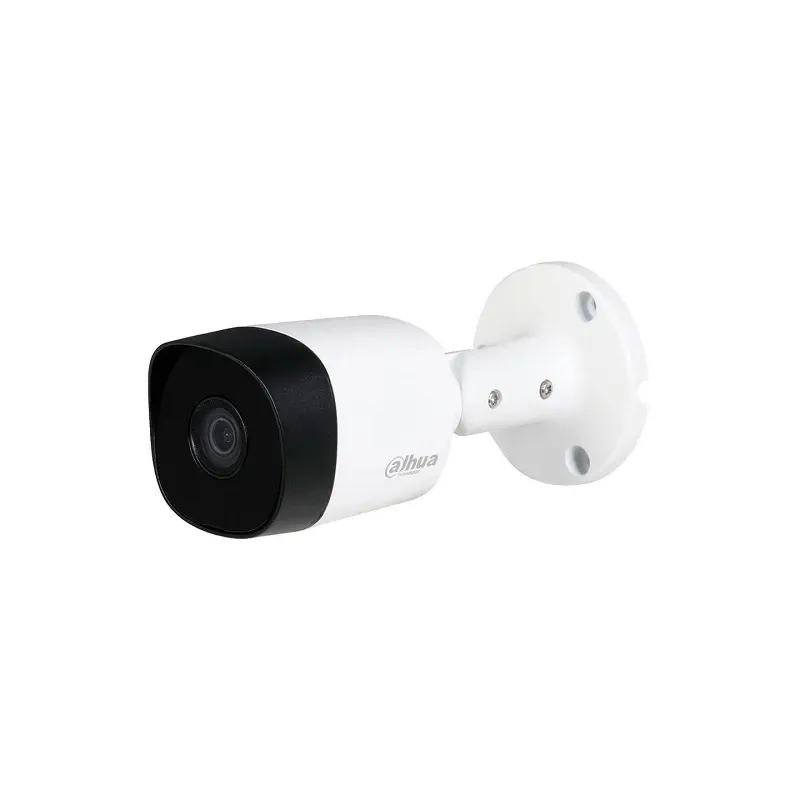

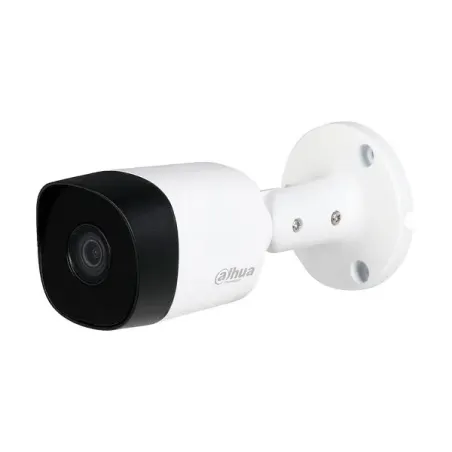

Camara Bullet HDCVI Cooper 1MP 2.8mm IR20m 720P IP67 DC12V Plastico Dahua DH-HAC-B1A11N

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Detect

25px/m (8px/ft)

2.8mm: 51m(167ft) 3.6mm: 51m(167ft)

Observe

63px/m (19px/ft)

2.8mm: 20m(66ft) 3.6mm: 20m(66ft)

Recognize

125px/m (38px/ft)

2.8mm: 10m(33ft) 3.6mm: 10m(33ft)

Identify

250ppm (76px/ft)

2.8mm: 5m(17ft) 3.6mm: 5m(17ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

OSD Menu

Multi-language

BLC Mode

BLC / DWDR

WDR

DWDR

Gain Control

AGC

Noise Reduction

2D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Interface

Audio Interface

N/A

Eelectrical

Power Supply

12V DC ±30%

Power Consumption

Max. 2.7W (12V DC, IR on)

Environmental

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above-40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

IP67

Construction

Casing

Plastic

Dimensions

70mm×70mm×149mm (2.76"×2.76"×5.87")

Net Weight

0.14kg (0.31lb)

Gross Weight

0.17kg (0.37lb)
