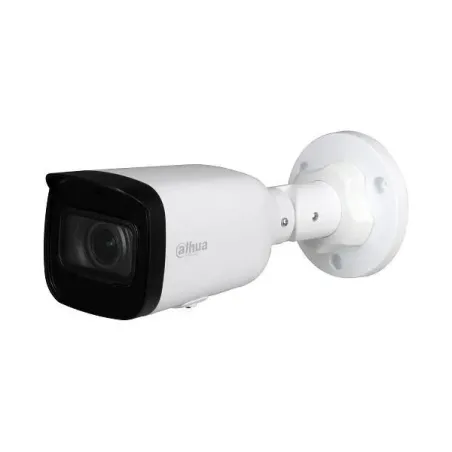

| Camera |
| Image Sensor | 1/3 ”4Megapixel progressive CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| S/N Ratio | > 56 dB |
| Min. Illumination | 0.03 Lux @ F1.7 |
| Illumination Distance | 35 m (114.83 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tiltl: 0°–90° Rotation: 0°–360° |
| Pan/Tilt/Rotation Range |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.8 mm–12 mm |
| Max. Aperture | F1.7 |
| Field of View | Horizontal: 98°–31° Vertical: 55°–18° Diagonal: 116°–36° |
| Iris Type | Fixed |
| Close Focus Distance | 0.8 m (2.6 ft) |
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| W | 66.0 m (183.7 ft) | 26.4 m (73.5 ft) | 13.2 m (36.7 ft) | 6.6 m (18.4 ft) |
| T | 200.0 m (656.2 ft) | 80.0 m (262.5 ft) | 40.0m (131.2 ft) | 20.0 m (65.6 ft) |
| Video |
| Video Compression | H.265; H.264; H.264B; MJPEG(only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main Stream:
2688 × 1520 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
Sub Stream:
704 × 576 (1 fps–20/25 fps)
704 × 480 (1 fps–20/30 fps) |
| Stream Capability | 2 streams |
| Resolution | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Manual/Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Alarm |
| Alarm Event | Network disconnection; IP conflict; motion detection; video tampering; illegal access; voltage detection; security exception; defocus detection; |
| Network |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| User/Host | 20 |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE
Chrome
Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certification |
| Certifications | CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B |
| Power |
| Power Supply | 12V DC/POE (802.3af) |
| Power Consumption | < 7.5W (PoE) |
| Environment |
| Operating Conditions | -30°C to +55°C (-22°F to +131°F) /less than≤95% |
| Strorage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection | IP67 |
| Structure |
| Casing | Metal + plastic |
| Dimensions | 243.5 mm × Φ90.7 mm (9.6" × Φ3.6") |
| Net Weight | 0.44 kg (1.0 lb) |
| Gross Weight | 0.69 kg (1.5 lb) |
