| Camera |
| Image Sensor | 1/2.8”2Megapixel progressive CMOS |
| Effective Pixels | 1920 (H) ×1080 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.002 Lux@F1.6 |
| IR Distance | 50 m (164.0 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs Number | 3 (IR LEDs) |
| Pan/Tilt/Rotation Range | Horizontal: 0°–355°; vertical: 0°–65°; rotation: 0°–355° |
| Lens |
| Lens Type | Fixed focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal:106°; vertical: 57°; diagonal: 126°
3.6 mm: Horizontal:87°; vertical: 46° ; diagonal: 104°
6 mm: Horizontal:54°; vertical: 29°; diagonal: 63° |
| Iris Type | Fixed aperture |
| Close Focus Distance | 2.8 mm: 0.6 m (2.0 ft)
3.6 mm: 1.2 m (3.9 ft)
6 mm: 2.5 m (8.2 ft) |
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 38.6 m (126.6 ft) | 15.4 m (50.5 ft) | 7.7 m (25.3 ft) | 3.9 m (12.8 ft) |
| 3.6mm | 55.2 m (181.1 ft) | 22.1 m (72.5 ft) | 11.0 m (36.1 ft) | 5.5 m (18.0 ft) |
| 6mm | 82.8 m (271.7 ft) | 33.1 m (108.6 ft) | 16.6 m (54.5 ft) | 8.3 m (27.2 ft) |
| Professional, Intelligent |
| Perimeter Protection | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Smart Codec | Yes |
| Video Frame Rate | Main stream (1920 × 1080@1–25/30 fps)
sub stream(704 × 576@1–25/30 fps)
third stream(1280 × 720@1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Network |

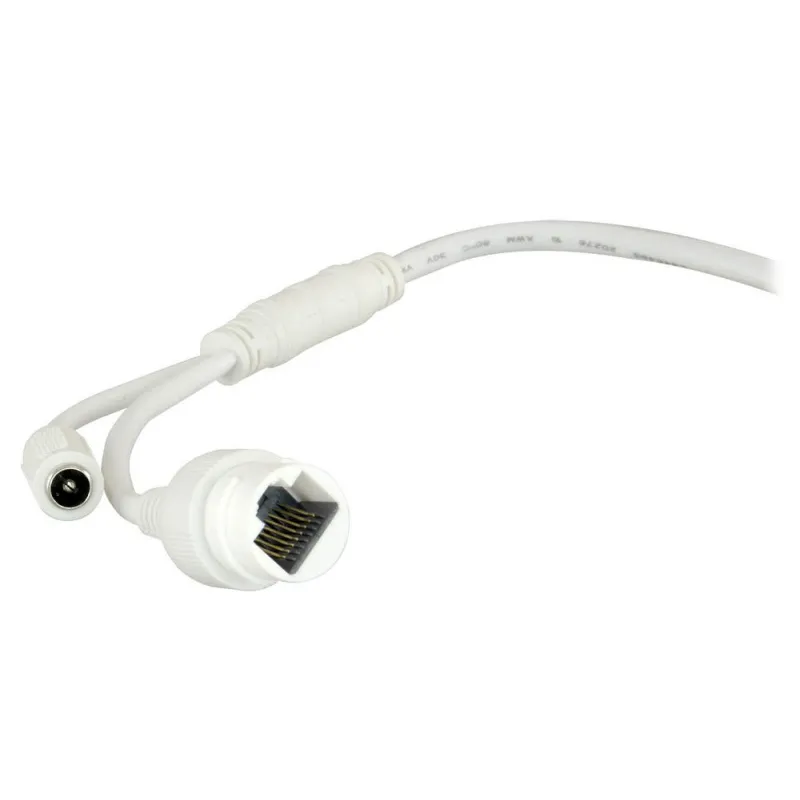

| Network | RJ-45 (10/100 Base-T) |
| Protocol | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;
RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
|
| Interoperability | ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec |
| Scene Self-adaptation | Yes |
| User/Host | 20 (Total bandwidth: 64 M) |
| Edge Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8, IE9, IE11 Chrome Firefox |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Phone | IOS; Android |
| Certification |
| Certifications | CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Power |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | <6.9W |
| Environment |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than≤95% |
| Strorage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Ingress Protection | IP67; IK10 |
| Structure |
| Casing | Metal + Plastic |
| Dimensions | 81 mm × Φ109.9 mm (3.2" × Φ4.3") |
| Net Weight | 378 g (0.8 lb) |
| Gross Weight | 523 g (1.2 lb) |
