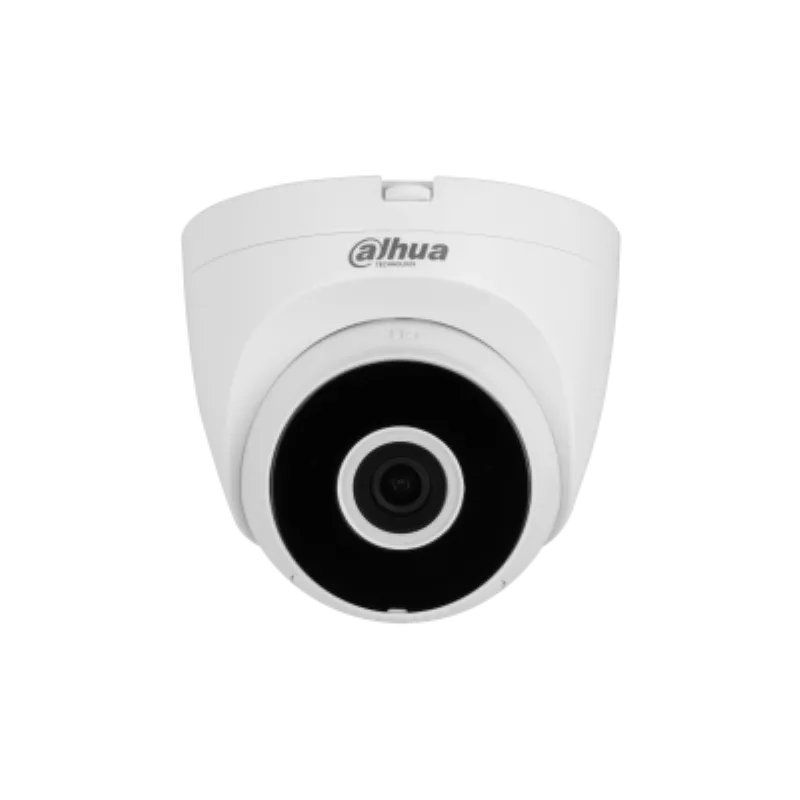

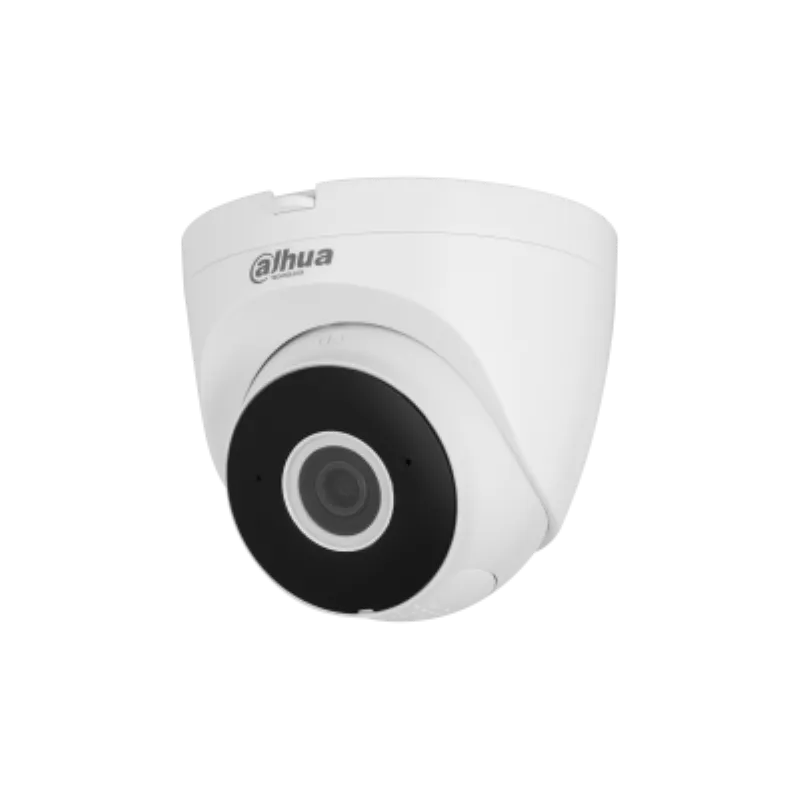

Camara Domo IP Dahua 2MP 2.8mm IR30m Lite Mic y Parlante Dahua DH-IPC-HDW1230DT-STW

Cámara

Sensor de imagen

CMOS de 1/2,8"

Máxima resolución

1920 (alto) × 1080 (vertical)

memoria de sólo lectura

16 MB

RAM

64 MB

Sistema de escaneo

Progresivo

Velocidad de obturación electrónica

Automático/Manual 1/3 s–1/100.000 s

Iluminación mínima

0,025 lux a F2.0 (color, 30 IRE)

0,0025 lux a F2.0 (blanco y negro, 30 IRE)

0 lux (iluminador encendido)

Relación señal/ruido

> 56 dB

Distancia de iluminación

30 m (98,43 pies)

Control de encendido y apagado del iluminador

Auto; Manual

Número de iluminador

1 (LED infrarrojo)

Rango de giro/inclinación/rotación

Panorámica: 0°–360°
Inclinación: 0°–78°
Rotación: 0°–360°

Lente

Tipo de lente

Focal fijo

Montura de lente

M12

Longitud focal

2,8 mm; 3,6 mm

Apertura máxima

F2.0

Campo de visión

2,8 mm:
Horizontal: 100°; Vertical: 53°; Diagonal: 120°
3,6 mm:
Horizontal: 86°; Vertical: 43°; Diagonal: 102°

Iris Control

Fijado

Distancia de enfoque cercana

2,8 mm: 0,6 m (1,97 pies)
3,6 mm: 1,0 m (3,28 pies)

Distancia DORI

Lente

Detectar

Observar

Reconocer

Identificar

2,8 milímetros

46,9 m (153,87 pies)

18,8 metros

(61,68 pies)

9,4 metros

(30,84 pies)

4,7 metros

(15,42 pies)

3,6 milímetros

58,8 m (192,91 pies)

23,5 metros

(77,10 pies)

11,8 metros

(38,71 pies)

5,9 metros

(19,37 pies)

Video

Compresión de vídeo

H.264B; H.264; H.264H; H.265

Códec inteligente

H.265+ inteligente; H.264+ inteligente

Velocidad de fotogramas del vídeo

Main stream:
1920 × 1080 (1–25/30 fps)
Sub stream:
640 × 480@(1–25 fps)

640 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 24 kbps–4096 kbps

H265: 9 kbps–4096 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Smart Illumination

Yes

Image Rotation

0°/180°

Mirror

Yes

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

G.711a; G.711Mu

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G

Wireless Range

Up to 120m(The performance varies based on

actual environment)

SDK and API

Yes

Cyber Security

Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP

Interoperability

ONVIF (Profile S/Profile T); CGI; P2P

User/Host

6 (Total bandwidth: 36 M)

Storage

Micro SD card (support max. 256 GB)

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

CE-RED: Radio Equipment Directive 2014/53/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

FCC ID: FCC PART 15C

Power

Power Supply

12 VDC

Power Consumption

Basic: 1.9 W (12 VDC)

Max. (H.265+IR intensity): 6.1 W (12 VDC)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Protection

IP67

Structure

Casing

Inner core: Metal + Plastic

Cover: Plastic

Product Dimensions

Ø109.9 mm × 102.2 mm (Ø4.33" × 4.02")

Net Weight

352 g (0.77 lb)

Gross Weight

530 g (1.17 lb)
