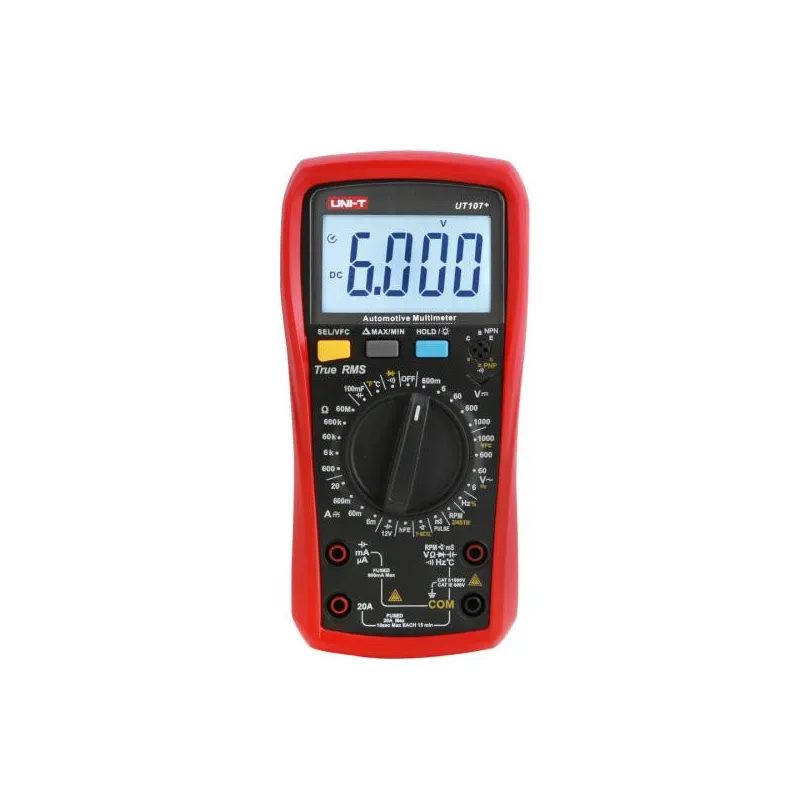

Multimetro Automotriz True RMS AC/DC 1000V Digital UNI-T UT-107+
SPECIFICATIONS:
DC voltage (V): 600mV/6V/60V/600V/1000V – Best Accuracy: ±(0.5%+3)
AC voltage (V): 6V/60V/600V/1000V – Best Accuracy: ±(0.8%+3)
AC current (A): 6mA/60mA/600mA/10A (20A for 10s max) – Best Accuracy: ±(1.0%+8)
DC current (A): 6mA/60mA/600mA/10A (20A for 10s max) – Best Accuracy: ±(0.8%+8)
Resistance (Ω): 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ – Best Accuracy: ±(0.8%+3)
Capacitance (F): 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF – Best Accuracy: ±(3%+10)
Frequency (Hz): 10Hz~10MHz – Best Accuracy: ±(0.1%+5)
Temperature (ºC): -40ºC~1000ºC – Best Accuracy: ±(1.0%+3)
Temperature (ºF): -40ºF~1832ºF – Best Accuracy: ±(1.5%+5)
VFC: 1000V ±(2.0%+10)
RPM: 4STR ±(3.0%+3)
Dwell angle:
1CYL(0～356.4°)
2CYL(0～178.2°)
3CYL(0～118.8°)
4CYL(0～89.1°)
5CYL(0～71.3°)
6CYL(0～59.4°)
8CYL(0～44.5°)
±(3.0%+5)
Pulse width: 999.9mS ±(1.5%+10)
FEATURES:
Display count: 6000
Manual range: √
Continuity/diode/transistor: √
Duty cycle: √
High voltage alarm: √
High voltage overload alarm: √
Large current alarm: √
Low battery indication: ＜ Approximately 2.4V
Backlight: √
Auto power off: √
Data hold: √
Max/Min/Relative mode: √
VFC: √
12V battery test: √
Safety rating: CAT II 1000V/CAT III 600V
GENERAL CHARECTERISTICS:
Power: AAA 1.5V x2
Product color: Red+Gray
Product net weight: 348g (Including batteries)
Product size: 183 x 88 x 56mm
Standard accessories: English manual,test leads,batteries,temperature probe
Standard individual packing: Gift box,carrying bag
Standard quantity per carton: 20 pcs
Standard carton measurement: 420×320×300mm
