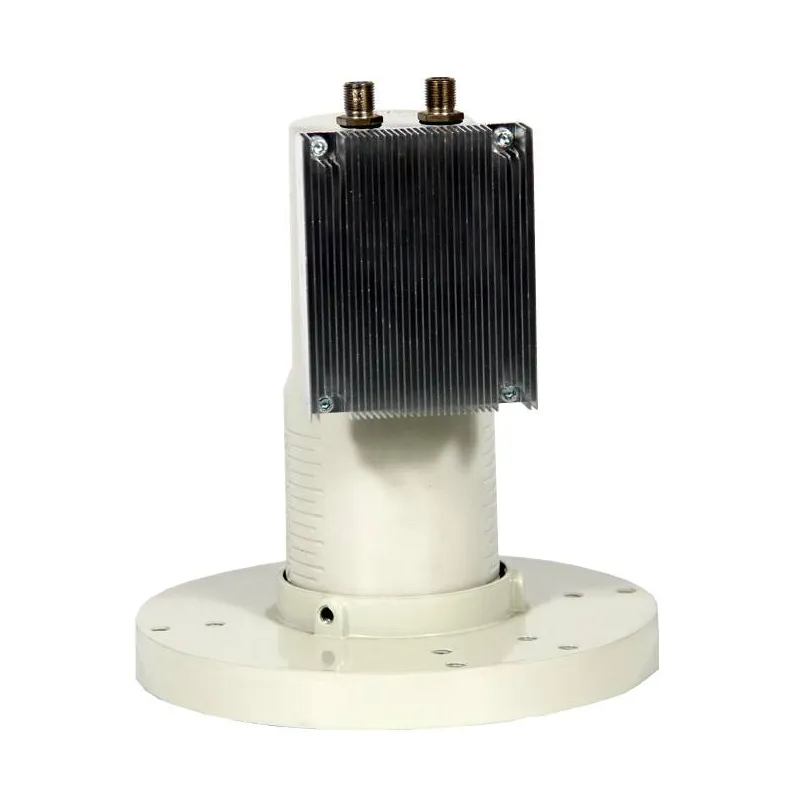

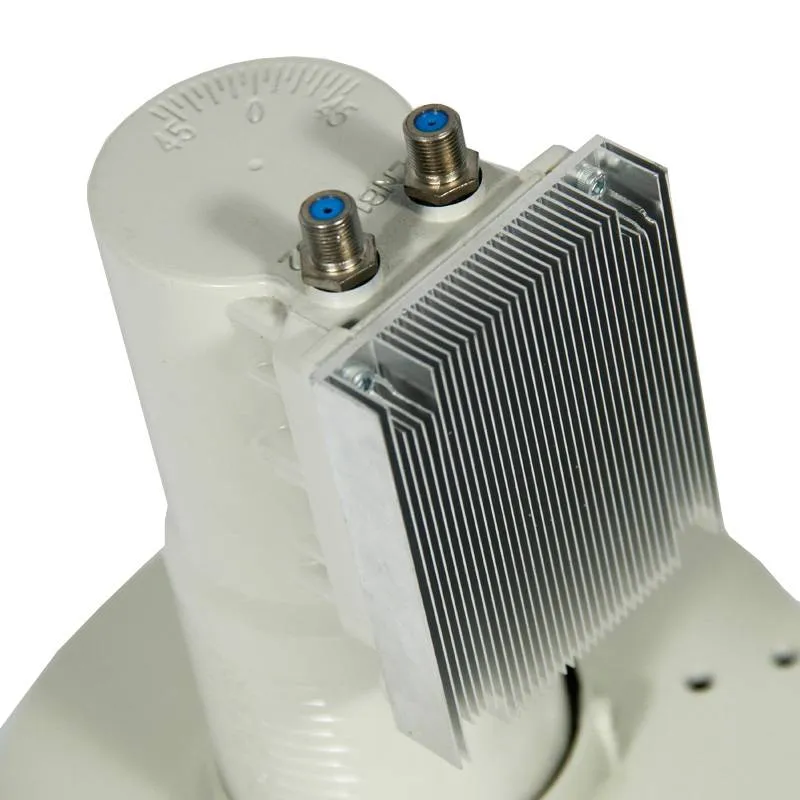

LNBF Aibitech Banda C Doble Polaridad Automatica 17K, 3.4 a 4.2GHz Doble Salidas RG6 Con Disipador de Calor

Input Frequency:

3.4 to 4.2GHz

L.O. Frequency:

5150MHz(±500 MHz@25centigrade)

Output Frequency:

950 to 1750 MHz

L.O. Leakage Input Port:

45dBm

L.O. Stability:

±1.5MHz(-40centigrade to +70centigrade)

Noise Figure):

<17°K typ

Conversion Gain:

65dB typ

Gain Flatness:

±1 dBm(max)

Intput VSWR:

2.5:1(max)

Output VSWR:

2.0:1(max)

Output Connector:

F-female Connector

Output Impedance:

75Ω

Cross Polar Isolation:

20dB(min)

Image Rejection:

45 dB (min)

Phase Noise:

-75dBc/Hz@10kHz(max)

Supply Voltage:

11.5-14.0v(Vertical Polarization)

16.0-19.0v(Horizontal Polarization)

Operating Temperature:

-40centigrade to +70centigrade

Storage Temperature:

-40centigrade to+80centigrade

Relative Humidity:

0%-95%
