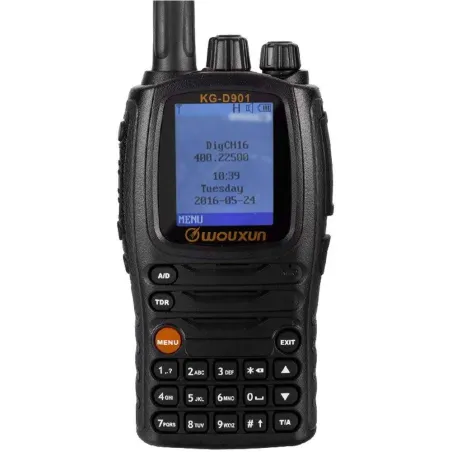

- Nombre de la marca:WOUXUN
- Número de modelo:KG-D901
- Maximum Range:3km-5km
- Dimensiones:120x61x31.5mm
- Is_Display:Sí
- Tipo:Radio de dos direcciones
- Rango de Frecuencias:400-470Mhz
- Gama de Charla:3-5km
- Walkie Talkie Type:Portátil
- Material:Plástico
- Canal de Almacenamiento:1000
- Frequency Range:400-470Mhz
- Type:Two Way Radio
- Dimensions:120x61x31.5mm
- Storage Channel:1000
- Output power:UHF 5W/1W
- Weight:260 g with antenna & battery)
Integral part
Mode: DMR two way radio
Frequency Range 400-470MHz , 136-174MHz , 350-390MHz
Channel Spacing Digital : 12.5KHz
Channel number: 16
Standard Package: 2000mAh , Lithium-ion
Working temperature: -20℃～+50℃
Storage temperature: -40℃～+80℃
Working Voltage: 7.4VDC
Working Currency: < 1300mA
Weight: 261 g
Size: 65 x 33 x 124 (mm)
Receiver
Frequency Stability: ±2.5ppm
Inter-modulation: 65dB
Co-channel Rejection: -8dB@12.5KHz
Spurious Inhibition: -57dBm@<1GHz , -47dBm@>1GHz
Block: 84dB
Adjacent Channel Selectivity: 60dB@12.5KHz
Spurious Response: ≥70dB
Regulated Audio Power: 1W
Digital Sensitivity: 0.3µV / -117.4dBm(BER 5%) , 0.7µV / -110dBm(BER 1%)
Transmitter
Transmission Power: ≤5W
FM Noise: 40dB@12.5KHz
Transmission Spurious: wide (-36dBm@<1GHz) ,narrow(-30dBm@>1GHz)
Adjacent Power: -60dB@12.5KHz
Bandwidth Limit :2.5KHz@12.5KHz
Spare Time Slot Power: -57dBm
Modulation Characteristics: +1dB~-3dB
Digital Transmission
Bit Error Rate: ≤3%
Output Power: ≤5W
4FSK Digital: 12.5KHz(data only):7K60FXD
Modulation Method: 12.5KHz(data+voice):7K60FXE
