| MARCA | GIGABYTE |
| MODELO | Z890 AORUS MASTER |
| CHIPSET | INTEL Z890 |
| TIPO DE SOCKET | LGA1851 INTEL |
| PROCESADORES | INTEL COMPATIBLE | Procesador Core Ultra 9 S1851 - Series 2
Procesador Core Ultra 7 S1851 - Series 2
Procesador Core Ultra 5 S1851 - Series 2
Procesador Core Ultra 3 S1851 - Series 2 |
| MEMORIAS RAM | COMPATIBLES | Memoria RAM DDR5 8200 MHz PC5-65600
Memoria RAM DDR5 7600 MHz PC5-60800
Memoria RAM DDR5 7200 MHz PC5-57600
Memoria RAM DDR5 6800 MHz PC5-54400
Memoria RAM DDR5 6400 MHz PC5-51200
Memoria RAM DDR5 6000 MHz PC5-48000
Memoria RAM DDR5 5600 MHz PC5-44800
Memoria RAM DDR5 5200 MHz PC5-41600
Memoria RAM DDR5 4800 MHz PC5-38400 |
| NUMERO DE SOCKETS DIMM | 4 |
| EXPANSION MAXIMA EN GB | 192 |
| TECNOLOGIA | Intel XMP
Dual Channel |
| TIPO DE RAM | DDR5 |
| VIDEO | REVISAR CARACTERÍSTICAS DEL PROCESADOR |
| SONIDO | TECNOLOGIA | HIGH DEFINITION AUDIO |
| CHIPSET | Realtek ALC1220 Codec |
| CANALES | 5.1 |
| CONECTIVIDAD | ETHERNET | CHIPSET | Marvell AQtion AQC113C |
| VELOCIDAD | 100 Mbps
1000 Mbps
2500 Mbps
5000 Mbps
10000 Mbps |
| WIRELESS | CHIPSET | Intel Wi-Fi 7 BE200NGW |
| PROTOCOLOS | 802.11be
802.11ax
802.11ac
802.11n
802.11g
802.11b
802.11a |
| BANDAS DE FRECUENCIA | 6 GHz
5 GHz
2.4 GHz |
| BLUETOOTH VERSION | 5.4 |
| ALMACENAMIENTO SERIAL ATA | NUMERO DE PUERTOS | 4 |
| VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s |
| RAID SATA | RAID 10
RAID 5
RAID 1
RAID 0 |
| ALMACENAMIENTO M.2 | NUMERO TOTAL DE SLOTS M.2 KEY M | 5 |
| M.2 CPU | 1 x PCIe 5.0 x4 tipos | 2280
2580
22110
25110 |
| 1 x PCIe 4.0 x4 tipos | 2280
22110 |
| 1 x PCIe 5.0 x4 tipos | 2280
22110 |
| M.2 CHIPSET | 1 x PCIe 4.0 x4 tipos | 2280 |
| 1 x PCIe 4.0 x4 y SATA tipos | 2280 |
| RAID PCIe o NVMe | RAID 10
RAID 5
RAID 1
RAID 0 |
| SLOTS DE EXPANSION | PCI Express CPU | PCI Express x16 slot, PCIe 5.0 modo x16 | 1 |
| PCI Express CHIPSET | PCI Express x16 slot, PCIe 4.0 modo x4 | 1 |
| PCI Express x16 slot, PCIe 4.0 modo x1 | 1 |
| PUERTOS INTERNOS | FRONT PANEL AUDIO HEADER | 1 |
| USB 3.2 GEN 2X2 TIPO-C HEADER | 1 |
| USB 3.2 GEN 1 HEADER | 4 |
| USB 2.0 HEADER | 4 |

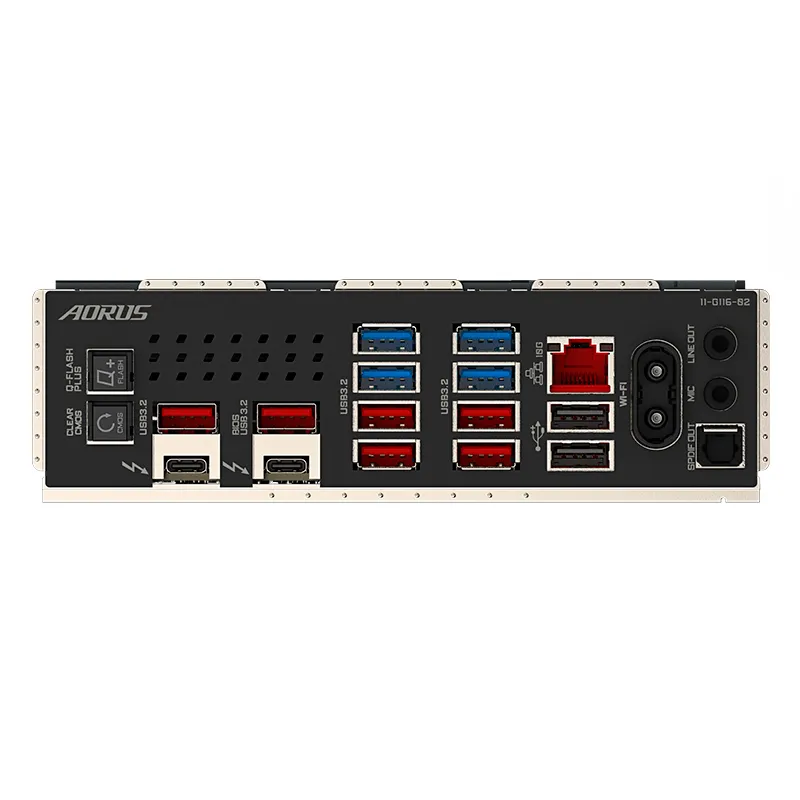

| PUERTOS BACK PANEL | USB 3.2 GEN 2 TIPO-A | 6 |
| USB 3.2 GEN 1 TIPO-A | 4 |
| USB 2.0 / 1.1 TIPO-A | 2 |
| RJ-45 | 1 |
| AUDIO JACKS | 2 |
| OPTICAL S/PDIF OUT | 1 |
| WI-FI / BLUETOOTH ANTENNA | 2 |
| BOTON CLEAR CMOS | 1 |
| Q-FLASH PLUS | 1 |
| DisplayPort and Thunderbolt video outputs | USB4 USB Type-C | 2 |
| BIOS | AMI BIOS UEFI |
| FACTOR DE FORMA Y DIMENSIONES | FACTOR DE FORMA | ATX |
| DIMENSIONES | 30.5 cm x 24.4 cm |
| PRESENTACION | CAJA |
| CONECTORES FUENTE POWER | 1 x 24-pin ATX Main Power | 1 |
| 1 x 8-pin ATX 12V power | 2 |
