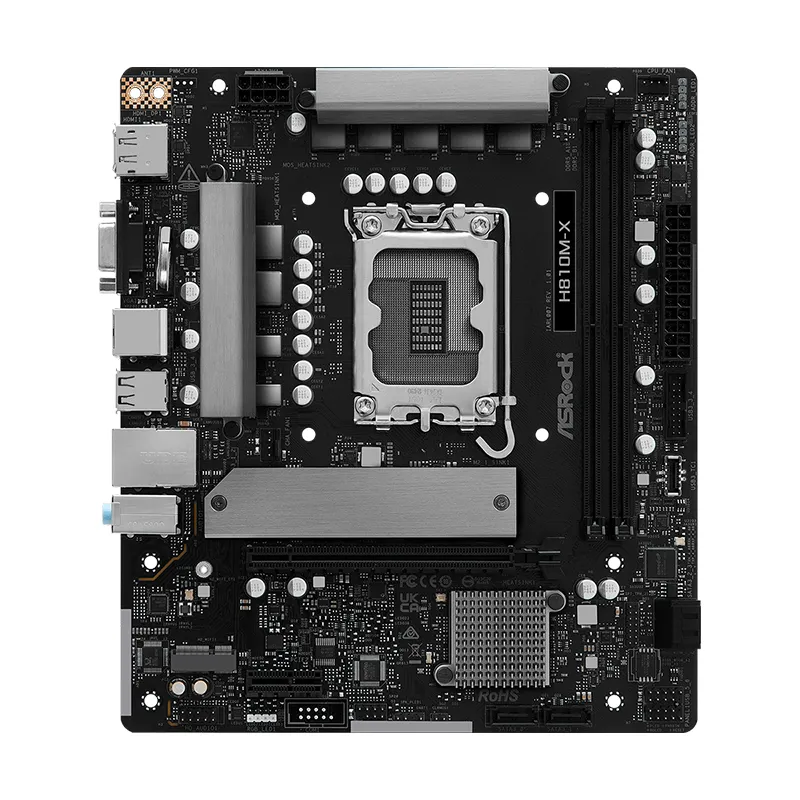

| MARCA | ASROCK |
| MODELO | H810M-X |
| CHIPSET | INTEL H810 |
| TIPO DE SOCKET | LGA1851 INTEL |
| PROCESADORES | INTEL COMPATIBLE | Procesador Core Ultra 9 S1851 - Series 2
Procesador Core Ultra 7 S1851 - Series 2
Procesador Core Ultra 5 S1851 - Series 2
Procesador Core Ultra 3 S1851 - Series 2 |
| MEMORIAS RAM | COMPATIBLES | Memoria RAM DDR5 8200 MHz PC5-65600
Memoria RAM DDR5 7600 MHz PC5-60800
Memoria RAM DDR5 7200 MHz PC5-57600
Memoria RAM DDR5 6800 MHz PC5-54400
Memoria RAM DDR5 6400 MHz PC5-51200
Memoria RAM DDR5 6000 MHz PC5-48000
Memoria RAM DDR5 5600 MHz PC5-44800
Memoria RAM DDR5 5200 MHz PC5-41600
Memoria RAM DDR5 4800 MHz PC5-38400 |
| NUMERO DE SOCKETS DIMM | 2 |
| EXPANSION MAXIMA EN GB | 128 |
| TECNOLOGIA | Extreme Memory Profile (XMP)
Dual Channel |
| TIPO DE RAM | DDR5 |
| VIDEO | Revisar caracteristicas del video del procesador. |
| SONIDO | TECNOLOGIA | High Definition Audio |
| CHIPSET | Realtek ALC897 Codec |
| CANALES | 7.1 |
| CONECTIVIDAD | ETHERNET | CHIPSET | Realtek RTL8125BG |
| VELOCIDAD | 10 Mbps
100 Mbps
1000 Mbps
2500 Mbps |
| ALMACENAMIENTO SERIAL ATA | NUMERO DE PUERTOS | 4 |
| VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s |
| ALMACENAMIENTO M.2 | NUMERO TOTAL DE SLOTS M.2 KEY M | 1 |
| M.2 CHIPSET | 1 x PCIe 4.0 x4 tipos | 2280 |
| SLOTS DE EXPANSION | PCI Express CPU | PCI Express x16 slot, PCIe 4.0 modo x16 | 1 |
| PCI Express CHIPSET | PCI Express x1 slot, PCIe 4.0 | 1 |
| M.2 Socket Key E, tipo 2230 para WiFi/BT | 1 |
| PUERTOS INTERNOS | FRONT PANEL AUDIO HEADER | 1 |
| USB 3.2 GEN 1 HEADER | 2 |
| USB 2.0 HEADER | 2 |
| USB 3.2 GEN 1 TIPO-C HEADER | 1 |

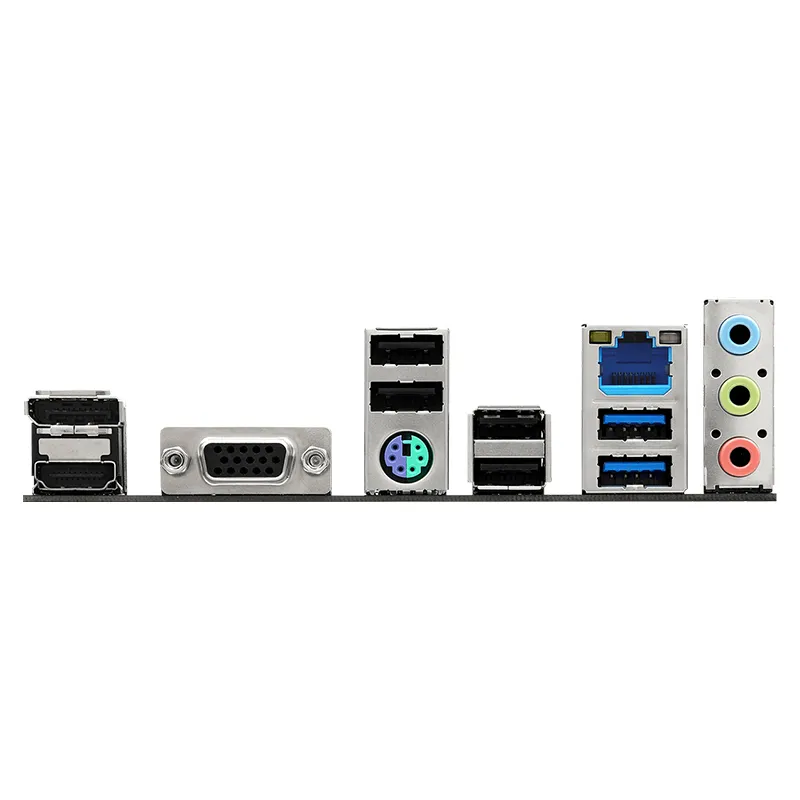

| PUERTOS BACK PANEL | USB 3.2 GEN 1 TIPO-A | 2 |
| USB 2.0 TIPO-A | 4 |
| VGA | 1 |
| HDMI | 1 |
| DISPLAYPORT | 1 |
| RJ-45 | 1 |
| AUDIO JACKS | 3 |
| PS/2 COMBO | 1 |
| BIOS | AMI BIOS UEFI |
| FACTOR DE FORMA Y DIMENSIONES | FACTOR DE FORMA | Micro-ATX |
| DIMENSIONES | 22.0 cm x 19.3 cm |
| PRESENTACION | CAJA |
| CONECTORES FUENTE POWER | 1 x 24-pin ATX Main Power | 1 |
| 1 x 8-pin ATX 12V power | 1 |
