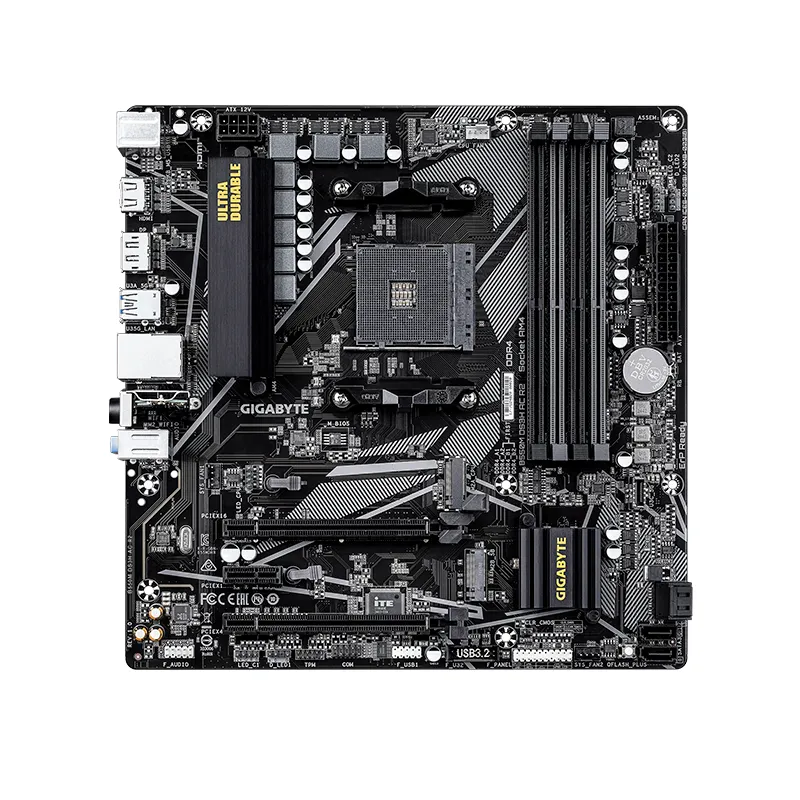

| MARCA | GIGABYTE |
| MODELO | B550M DS3H AC R2 |
| REVISION | 1.0 |
| CHIPSET | AMD B550 |
| TIPO DE SOCKET | AM4 AMD |
| PROCESADORES | AMD COMPATIBLE | Procesador AMD Ryzen 3 SAM4 5XXX
Procesador AMD Ryzen 9 SAM4 5XXX
Procesador AMD Ryzen 7 SAM4 5XXX
Procesador AMD Ryzen 5 SAM4 5XXX
Procesador AMD Ryzen 5 SAM4 4XXX
Procesador AMD Ryzen 5 SAM4 3XXX
Procesador AMD Ryzen 3 SAM4 3XXX
|
| MEMORIAS RAM | COMPATIBLES | Memoria RAM DDR4 4000 MHz PC4-32000
Memoria RAM DDR4 3600 MHz PC4-28800
Memoria RAM DDR4 3200 MHz PC4-25600
Memoria RAM DDR4 3000 MHz PC4-24000
Memoria RAM DDR4 2666 MHz PC4-21300
|
| NUMERO DE SOCKETS DIMM | 4 |
| EXPANSION MAXIMA EN GB | 128 |
| TECNOLOGIA | Intel XMP
Dual Channel
|
| TIPO DE RAM | DDR4 |
| VIDEO | Revisar caracteristicas del Procesador |
| SONIDO | TECNOLOGIA | High Definition (HD) |
| CHIPSET | Realtek ALC1220 Codec
|
| CANALES | 7.1 |
| CONECTIVIDAD | ETHERNET | CHIPSET | Realtek 1GbE
|
| VELOCIDAD | 10 Mbps
100 Mbps
1000 Mbps
|
| WIRELESS | CHIPSET | Realtek Wi-Fi RTL8821CE |
| PROTOCOLOS | 802.11ac
802.11n
802.11g
802.11b
802.11a
|
| BANDAS DE FRECUENCIA | 5 GHz
2.4 GHz
|
| BLUETOOTH VERSION | 5.0 |
| ALMACENAMIENTO SERIAL ATA | NUMERO DE PUERTOS | 4 |
| VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s
|
| RAID SATA | RAID 10
RAID 1
RAID 0
|
| ALMACENAMIENTO M.2 | NUMERO TOTAL DE SLOTS M.2 KEY M | 2 |
| M.2 CPU | 1 x PCIe 4.0 x4 y SATA tipos | 2280
|
| M.2 CHIPSET | 1 x PCIe 3.0 x2 y SATA tipos | 2280
|
| RAID PCIe o NVMe | RAID 1
RAID 0
|
| NOTA M.2 CPU | Velocidad varia con modelo del procesador |
| SLOTS DE EXPANSION | PCI Express CPU | PCI Express x16 slot, PCIe 4.0 modo x16 | 1 |
| PCI Express CHIPSET | PCI Express x16 slot, PCIe 3.0 modo x4 | 1 |
| PCI Express x1 slot, PCIe 3.0 | 1 |
| NOTA PCI Express CPU | Velocidad varia con modelo del procesador |
| PUERTOS INTERNOS | FRONT PANEL AUDIO HEADER | 1 |
| USB 3.2 GEN 1 HEADER | 2 |
| USB 2.0 / 1.1 HEADER | 2 |
| USB 3.2 GEN 1 TIPO-C HEADER | 1 |

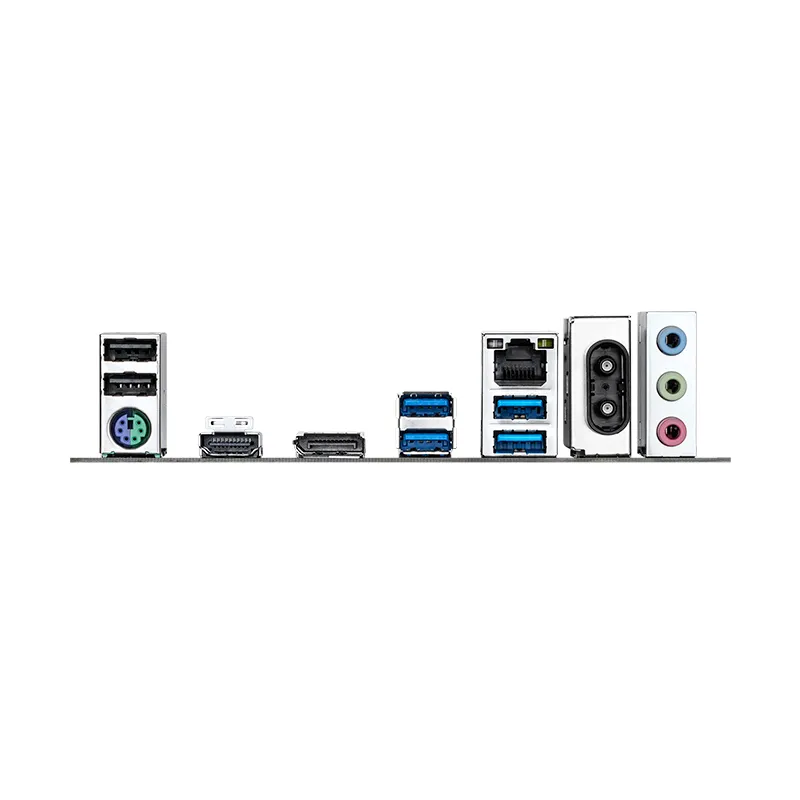

| PUERTOS BACK PANEL | USB 3.2 GEN 1 TIPO-A | 4 |
| USB 2.0 / 1.1 TIPO-A | 2 |
| HDMI | 1 |
| DISPLAYPORT | 1 |
| RJ-45 | 1 |
| WI-FI / BLUETOOTH ANTENNA | 2 |
| PS/2 COMBO | 1 |
| BIOS | AMI BIOS UEFI |
| FACTOR DE FORMA Y DIMENSIONES | FACTOR DE FORMA | Micro-ATX |
| DIMENSIONES | 24.4 cm x 24.4 cm |
| PRESENTACION | CAJA |
| CONECTORES FUENTE POWER | 1 x 24-pin ATX Main Power | 1 |
| 1 x 8-pin ATX 12V power | 1 |
