Sistema
|
|
Procesador principal
|
Procesador de grado industrial
|
|
Sistema operativo
|
Linux integrado
|
|
Interfaz operativa
|
Web; GUI local
|
|
Protección perimetral
|
|
IA de rendimiento perimetral por grabadora (cantidad de canales)
|
Modelo Avanzado: 2 canales, 10 reglas IVS para cada canal Modelo General: 4 canales, 10 reglas IVS para cada canal
|
|
Detección de rostro
|
|
Atributos de la cara
|
6 atributos
|
|
Rendimiento de detección de rostros de la IA por grabadora (número de canales)
|
1 canal (hasta 8 imágenes de rostros/s cada canal)
|
|
Reconocimiento facial
|
|
Capacidad de la base de datos facial
|
Hasta 10 bases de datos de rostros con 10.000 imágenes.
|
|
Rendimiento del reconocimiento facial de la IA por grabadora (número de canales)
|
1 canal
|
|
SMD Plus
|
|
SMD Plus por grabador
|
4 canales: Filtrado secundario para personas y vehículos de motor, reduciendo falsas alarmas provocadas por hojas, lluvia y cambios en las condiciones de iluminación.
|
|
Audio y video
|
|
Entrada de cámara analógica
|
4 puertos BNC, admite detección automática HDCVI/AHD/TVI/CVBS
|
|
Entrada de cámara
|
1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12,5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps. 2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.
|
|
Entrada de cámara IP
|
Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS、SMD、Face) will be disabled.
|
|
Encoding Capacity
|
Main stream: 5MP Mode: All channel 5MP@(1-6fps) 5M-N Mode: All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps) Sub stream: D1, CIF@(1–15fps)
|
|
Dual-stream
|
Yes
|
|
Video Bit Rate
|
32 kbps–6144 kbps
|
|
Audio Sampling
|
8 kHz, 16 bit
|
|
Audio Bit Rate
|
64 kbps
|
|
Video Output
|
1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
|
|
Multi-screen Display
|
When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6
|
|
Third-party Camera Access
|
ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
|
|
Compression Standard
|
|
Video Compression
|
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
|
|
Audio Compression
|
G.711a; G.711u; PCM
|
|
Network
|
|
Network Protocol
|
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
|
|
Mobile Phone Access
|
IOS; Android
|
|
Interoperability
|
ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
|
|
Browser
|
Chrome; Firefox; IE 9 or later
|
|
Network Mode
|
Single-address mode
|
|
Recording Playback
|
|
Record Mode
|
General, motion detection; intelligent; alarm; POS
|
|
Recording Playback
|
Up to 4 channels
|
|
Backup Method
|
USB device and network
|
|
Playback Mode
|
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
|
|
Alarm
|
|
General Alarm
|
Motion detection; alarm box; camera external alarm; network alarm; PIR alarm
|
|
Anomaly Alarm
|
Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict) ;video loss; video tampering; camera offline
|
|
Intelligent Alarm
|
Face detection; face recognition; perimeter protection
|
|
Alarm Linkage
|
Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log, preset; email
|
|

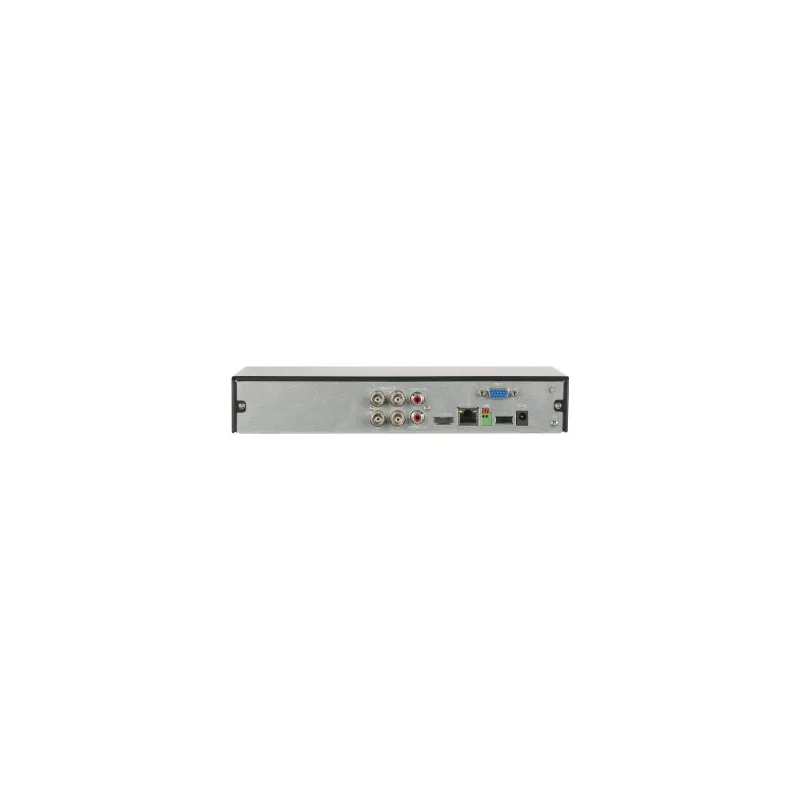

Ports
|
|
Audio Input
|
1-channel RCA 4-channel BNC (Coaxial Audio)
|
|
Audio Output
|
1-channel RCA
|
|
Two-way Talk
|
Yes (share the same audio input with the first channel)
|
|
HDD Interface
|
1 SATA port, up to 16TB capacity. The maximum HDD capacity varies with environment temperature.
|
|
RS-485
|
1
|
|
USB
|
2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
|
|
HDMI
|
1
|
|
VGA
|
1
|
|
Network Port
|
1 (10/100 Mbps Ethernet port, RJ-45)
|
|
General
|
|
Power Supply
|
12 VDC, 1.5A
|
|
Power Consumption
|
<5 W (without HDD)
|
|
Net Weight
|
0.84 kg (1.85 lb)
|
|
Gross Weight
|
1.37 kg (3.02 lb)
|
|
Product Dimensions
|
260.0 mm × 237.8 mm × 47.6 mm (10.24'' × 9.36'' × 1.87'') (W × D × H)
|
|
Packaging Dimensions
|
333.0 mm × 89.0 mm × 315.0 mm (13.11'' × 3.50'' × 12.40'') (W × D × H)
|
|
Operating Temperature
|
–10 °C to +55 °C (14 °F to +131 °F)
|
|
Storage Temperature
|
–20 °C to +60 °C (–4 °F to +140 °F)
|
|
Operating Humidity
|
≤93% (RH)
|
|
Installation
|
Rack or desktop
|
|
Certifications
|
CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017 +A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
|
