| Sistema |
| Procesador principal | Procesador de grado industrial |
| Sistema operativo | Linux integrado |
| Interfaz de operación | Web, GUI local |
| AI |
| IA por Recorder | Detección de rostros; reconocimiento facial; metadatos de video (humanos, vehículos motorizados y vehículos no motorizados); protección perimetral; SMD Plus |
| IA por cámara | Detección de rostros; reconocimiento facial; metadatos de video (humanos, vehículos motorizados y vehículos no motorizados); SMD Plus; análisis estéreo; distribución de multitudes; conteo de personas; ANPR; densidad de vehículos; monitoreo de objetos |
| AcuPick AI de Cámara + Grabadora | Máx. 64 canales, 1 evento combinado por canal |
| Protección perimetral |
| Rendimiento perimetral de IA por grabadora (número de canales) | Modo simultáneo: 32 canales, 10 reglas IVS para cada canal Modo heterogéneo: 24 canales, 10 reglas IVS para cada canal Consulte la información sobre la salida de vídeo para obtener detalles sobre el modo. |
| Rendimiento perimetral de la IA por cámara (número de canales) | Todos los canales (64 objetivos/s) |
| Detección de rostros |
| Atributos faciales | Género; grupo de edad; gafas; expresiones; mascarilla; barba |
| Rendimiento de detección de rostros de IA por grabadora (número de canales) | Modo simultáneo: 8 canales (hasta 12 imágenes de rostros/s por canal) Modo heterogéneo: 5 canales (hasta 12 imágenes de rostros/s por canal) Consulte la información sobre la salida de vídeo para obtener detalles sobre el modo. |
| Rendimiento de detección de rostros de IA por cámara (número de canales) | 64 canales |
| Reconocimiento facial |
| Capacidad de la base de datos de rostros | Hasta 40 bases de datos faciales con 300.000 imágenes, con una capacidad total de 48 G. |
| Rendimiento del reconocimiento facial de la IA por grabadora (número de canales) | Modo simultáneo: FD de 32 canales (por cámara) + FR (por grabadora), flujo de imágenes: 32 imágenes de rostros/s; FD de 8 canales (por grabadora) + FR (por grabadora), flujo de vídeo: 16 imágenes de rostros/s Heterogeneous mode: 16-channel FD (by camera) + FR (by recorder),image stream: 16 face images/s; 5-channel FD (by recorder) + FR (by recorder), video stream: 10 face images/s Refer to the information on video output for details on the mode |
| Face Recognition Performance of AI by Camera (Number of Channels) | 64 channels |
| SMD Plus |
| SMD Plus by Recorder | 32-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | All channels (128 targets/s) |
| Video Metadata |
| Metadata Performance of AI by Recorder (Number of Channels) | 8 channels |
| Metadata Performance of AI by Camera (Number of Channels) | 64 channels |
| People Attributes | 9 human body attributes |
| Human Attributes | Top color, top type, hat, bag, age, gender and umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle model, vehicle logo, plate color, ornament, calling, |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet. |
| Vehicle License Plate Comparison |
| ANPR by Camera (Number of Channels) | All channels (64 targets/s) |
| License Plate Database Capacity | Blocklist and allowlist: 20,000 |
| Audio and Video |
| Access Channel | 64 channels |
| Network Bandwidth | AI disabled: 1280 Mbps incoming, 1280 Mbps recording and 1024 Mbps outgoing AI enabled: 640 Mbps incoming, 640 Mbps recording and 512 Mbps outgoing |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
| Decoding Capability | AI disabled: 2-channel 32 MP@30 fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 11-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps；128-channel D1@30 fps AI enabled: 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps; 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 5-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps； 80-channel D1@30 fps |
| Video Output | 2 VGA, 4 HDMI; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI1&2: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI3: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI4: 1920 × 1080, 1280 × 1024, 1280 × 720 Simultaneous mode (simultaneously outputs video sources for all the HDMI1-4 and VGA1-2 ports) Max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1 and HDMI2 is 4K; max. resolution of HDMI3 is 8K; max. resolution of HDMI4 is 1080p Heterogeneous mode (simultaneously outputs video sources for the VGA1 and HDMI1, or VGA2 and HDMI2. It also outputs heterogeneous video sources for HDMI1–4) Max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1, HDMI2 and HDMI3 is 4K; max. resolution of HDMI4 is 1080p |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16/25/36 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Compression Standard |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MPEG4; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF (Profile S/profile T/Profile G); CGI; SDK |
| Browser | Chrome IE 9 or later Firefox |
| Network Mode | Multi-address mode, load balance, fault tolerance and other network port binding modes |
| Recording Playback |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | Manual; alarm; motion detection; scheduled |
| Backup Method | Portable hard drive, eSATA disk, burner, USB device and network |
| Playback Mode | 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off |
| Storage |
| Disk Group | Yes |
| RAID | RAID 0/1/5/6/10 |
| Hot Swapping | Yes |
| Alarm |
| General Alarm | Motion detection; video tampering; video loss; scene changing, PIR alarm, IPC external alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan |
| Intelligent Alarm | Face detection; face recognition; perimeter protection (intrusion and tripwire); SMD Plus alarms; ANPR; people counting; stereo analysis; crowd distribution; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; buzzer; log, preset; email |

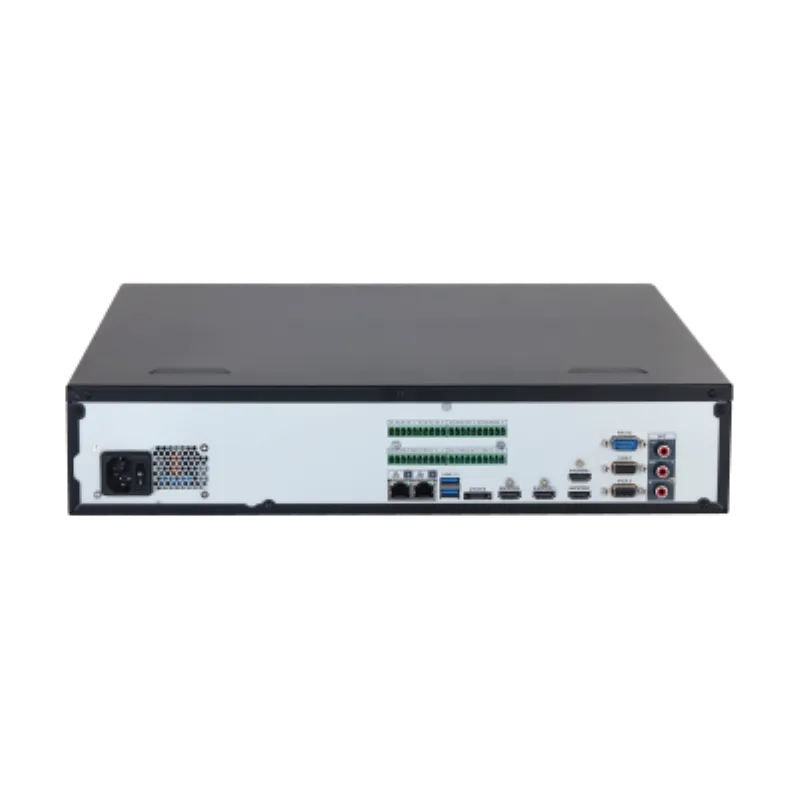

| Port |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels |
| Disk Interface | 8 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 × A/B |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 4 |
| VGA | 2 |
| Network Port | 2 (10/100/1000/2500 Mbps Ethernet port, RJ-45) |
| General |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | <18 W (without HDD) |
| Net Weight | 6.40 kg (14.11 lb) (without HDD) |
| Gross Weight | 10.35 kg (22.82 lb) (without HDD) |
| Product Dimensions | 444.0 mm × 456.6 mm x 95.0 mm (17.48" × 17.98" × 3.74") (W × D × H) |
| Packaging Dimensions | 570.0 mm × 570.0 mm × 226.0 mm (22.44" × 22.44" × 8.90")(W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Installation | Rack or desktop |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2020, Class A; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014+A11:2017 |
