Hardware |
PoE | Yes |
Ethernet Port | 4 |
Ethernet Port Speed | 10/100 Mbps |
Ethernet Port Uplink Speed | 10/100/1000 Mbps |
Description of Function Slots | Port1-4: 4*RJ45 10/100 Mbps Port5: 1*RJ45 10/100/1000 Mbps |
Operating Temperature | –30 °C to +65 °C |
Operating Humidity | 5%–95% (RH) |
Storage Temperature | –40 °C to +70 °C |
Storage Humidity | 5%–95% (RH) |
Power Consumption | Idling: 5 W Full load: 90 W |
Performance |
Layer | Layer 2 |
Management Type | No |
MTBF | 66.37 |
Switching Capacity | 2.8 Gbps |
Packet Forwarding Rate | 2.08 Mpps |
Packet Buffer Size | 1 Mbit |
Jumbo Frame | 9K Byte |
MAC Table Size | 4K |
Communication Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab,IEEE 802.3z, IEEE 802.3az |
PoE |
PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
PoE Power | Port 2-4 ≤ 30 W, port 1 ≤ 90 W, Full load ≤ 90 W |
PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
Long Distance PoE Transmission | Yes |
Port |
IEEE 802.3x Flow Control | Yes |
General |
Statics Protection | Air discharge: 8 kV Contact discharge: 6 kV |
Lighting Protection | Common mode: 4 kV Differential mode: 2 kV |
Net Weight | 0.47 kg (1.03 lb) |
Gross Weight | 0.65 kg (1.43 lb) |
Product Dimensions | 150 mm × 100 mm × 30 mm (5.9" × 3.9" × 1.2") |
Packaging Dimensions | 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") |
Casing | Metal |

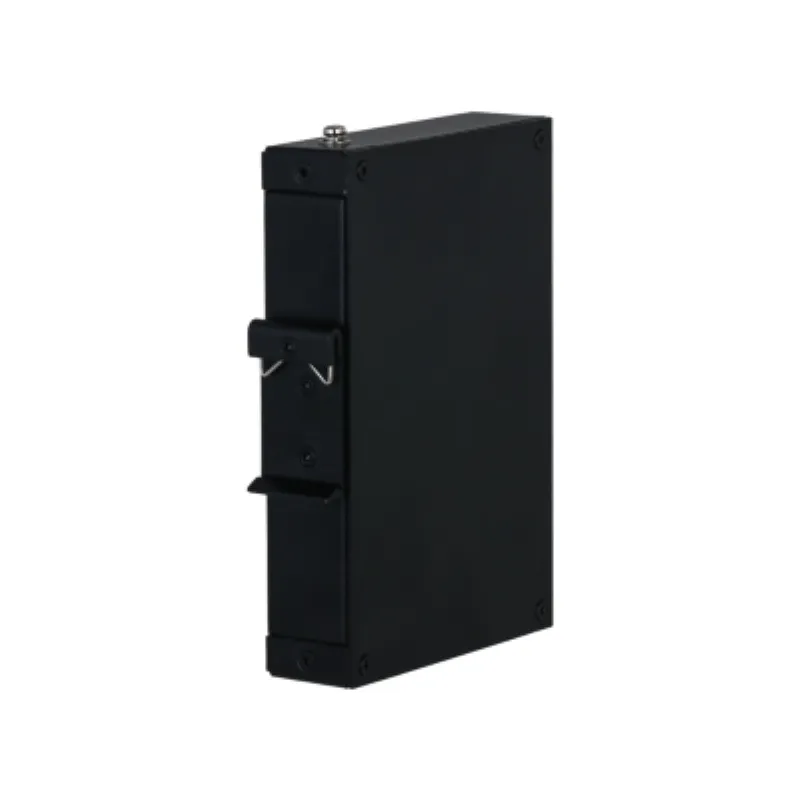

Installation | Desk Mount Guide Rail Mount |
Certifications | CE; FCC |
