| Sistema |
| Sistema operativo | Linux |
| Idioma | 10 idiomas , incluidos chino e inglés |
| Modo de operación | Pantalla táctil |
| Modo de espera automático/Apagado | Apagado/5–60 min |
| Sonido del teclado | Encendido/Apagado |
| Pantalla de visualización | Pantalla táctil TFT a color de 7 pulgadas y 16,7 millones de colores, pantalla LCD con interfaz RGB: 1920 × 1200, brillo de luz de fondo ajustable |
| Botón | Teclado: 13 teclas
Otros: Botón de encendido y apagado |
| CONDUJO | 2 |
| Actualizar | Admite actualizaciones en línea y locales |
| Estructura y entorno |
| Peso neto | 0,93 kg (2,05 libras) |
| Dimensiones del producto | 235,0 mm × 135,0 mm × 45,0 mm (9,25'' × 5,31'' × 1,77'') (largo × ancho × alto) |
| Temperatura de funcionamiento | –10 °C a +55 °C (14 °F a 131 °F) |
| Humedad de funcionamiento | 30%–90% (HR) |
| Prueba IPC |
| Acceso a la cámara | Protocolo privado ONVIF y Dahua |
| Resolución | 2 MP (solo admite 1920 × 1080 a 25 fps, 1920 × 1080 a 30 fps); 4 MP; 6 MP; 4K |
| Inicialización | Sí |
| Imagen | Vista en vivo, instantánea y grabación, zoom y decodificación H.264/H.265 |
| Control de funciones | Modifique la resolución de IPC, la dirección IP y la contraseña de la cuenta. Controle IPC para restaurar los valores predeterminados de fábrica. |
| Prueba de vídeo analógico |
| Formato de vídeo | HDCVI; HDTVI; AHD; CVBS (NTSC, PAL) |
| Resolución | HDCVI: 720p a 25/30/50/60 fps, 1080p a 25/30 fps, 2560 × 1440 a 25/30 fps, 2880 × 1620 a 25/30 fps
HDTVI: 720p a 25/30/50/60 fps, 1080p a 25/30 fps, 2048 × 1536 a 18 fps, 2560 × 1440 a 25/30 fps
AHD: 720p a 25/30 fps, 1080p a 25/30 fps, 2048 × 1536 a 18/25/30 fps, 2560 × 1440 a 25/30 fps
CVBS: 720 × 576 a 25 fps, 720 × 480 a 30 fps |
| Control de funciones | Menú OSD; control PTZ |
| Imagen | Vista en vivo, instantánea y grabación, zoom |
| Generador de señales de vídeo | Señal de prueba de vídeo PAL; NTSC
HDCVI; HDTVI; Señal de prueba de vídeo AHD (720p/1080p) |
| UTC |
| UTC | Cambia del modo CVBS al modo CVI/TVI/AHD;
Cambia de un formato HD (hasta 1080p) a otro formato HD |
| Wifi |
| Estándar | IEEE 802.11b/g/n/ac |
| Rango de frecuencia | 2,412–2,472 GHz
5,18–5,24 GHz
5,745–5,825 GHz |
| Transmisión de potencia | CE EIRP:
≤15,98 dBm a 2400–2483,5 MHz
≤11,98 dBm a 5,18 GHz–5,24 GHz
≤9,86 dBm a 5,745 GHz–5,825 GHz
Potencia de salida FCC:
≤15,98 dBm a 2400–2483,5 MHz
≤11,98 dBm a 5,18 GHz–5,24 GHz
≤9,86 dBm a 5,745 GHz–5,825 GHz |
| multímetro digital |
| Voltaje de CC | Límite: 2/20/200/600 V
Rango de lectura: ±19999
Resolución mínima: 0,1 mV
Precisión: ±0,1 % +8 |
| AC Voltage | Limit: 20/200/600 V
Reading range: ±1999
Min. Resolution: 1 V
Accuracy: ±1.2%+3 |
| DC Current | Limit: 20/200/2000 mA
Reading range: ±19999
Min. Resolution: 1 uA
Accuracy: ±0.1%+8* |
| AC Current | Limit: 20/200/2000 mA
Reading range: ±1999
Min. Resolution: 1 uA
Accuracy: ±1.2%+3 |
| Resistance Test | Limit: 2 kΩ/20 kΩ/200 kΩ/2 mΩ/20 mΩ
Reading range: 0–19999
Min. Resolution: 0.1 Ω
Accuracy: ±0.1%+8 |
| Capacitance Test | Limit: 2 nF/20 nF/200 nF/2 uF/20 uF/200 uF/2 mF/20 mF
Reading range: 0–1999
Min. Resolution: 1 pF
Accuracy: ±4%+5 |
| Diode Voltage Drop | Limit: 2 V
Reading range: 0–19999
Min. Resolution: 0.1 mV
Accuracy: ±0.1%+20 |
| Continuity Test | Limit: 2 kΩ
Reading range: 0–19999
Min. Resolution: 0.1 Ω
Accuracy: ±0.1%+20 |
| Others |
| RS-485 Control | Communication protocol: More than 30 protocols including Pelco–D/P, Samsung, Panasonic, Lilin, and Yaan
Baud Rate: 150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600bps, 19200 bps |
| Wireless | Spectrum Test; Wi-Fi Test; Signal Monitoring |
| Cable Test | Network Cable Test: Test network cable pair length, attenuation and delay deviation.
Test two or more network cables. The connection sequence and network cable number will be displayed on the screen. |
| HDMI Test | 1-ch HDMI video input (720p and 1080p);
1-ch HDMI video output (1920 ×1080p) |
| Audio Test | 1 × audio input, and 1 audio output |
| Power Supply for Camera | 12 VDC 2A |
| Network Test | Features IP address scanning and PING test. |
| Protocol Code Acquisition | Built–in serial port tool, can receive and display RS485 protocol code data sent by control device, and can also send hexadecimal codes. |
| Optical Power Meter | Detector Type: InGaAs
Calibrated Wavelength: 1625/1550/1480/1310n/1300/850 nm
Power Test Range: –70 dBm to +10 dBm
Measurement Accuracy: <±3% dB (–10 dBm, +22 °C/+71.6 °F); <±5% dB (FS, +22 °C/+71.6 °F)
Resolution: Linear: 0.1%, logarithmic : 0.01 dBm
Connector: FC/PC |

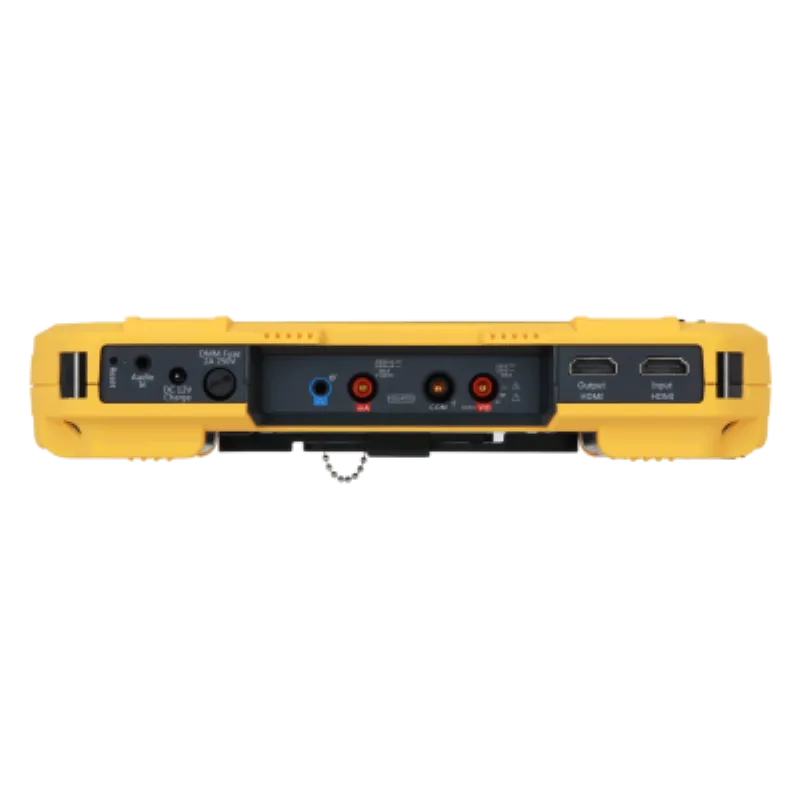

| Port |
| Power | 1 × charge port, 12 VDC
1 × power output port, 12VDC 2A |
| Audio Port | 1 × audio input port, 1 × audio output port |
| USB | 1 × USB, 1 × Micro-USB |
| Network Port | 2 × RJ45 10M/100M/1G network port |
| SD Card | NA |
| HDMI | 1 × HDMI input port
1 × HDMI output port |
| RS-232 | NA |
| RS-485 | 1 |
| VLS | NA |
| OPM | 1 |
| Multimeter | 4 |
| Power Supply |
| Power Supply | 12 VDC 1A/POE 48 V–0.5 A |

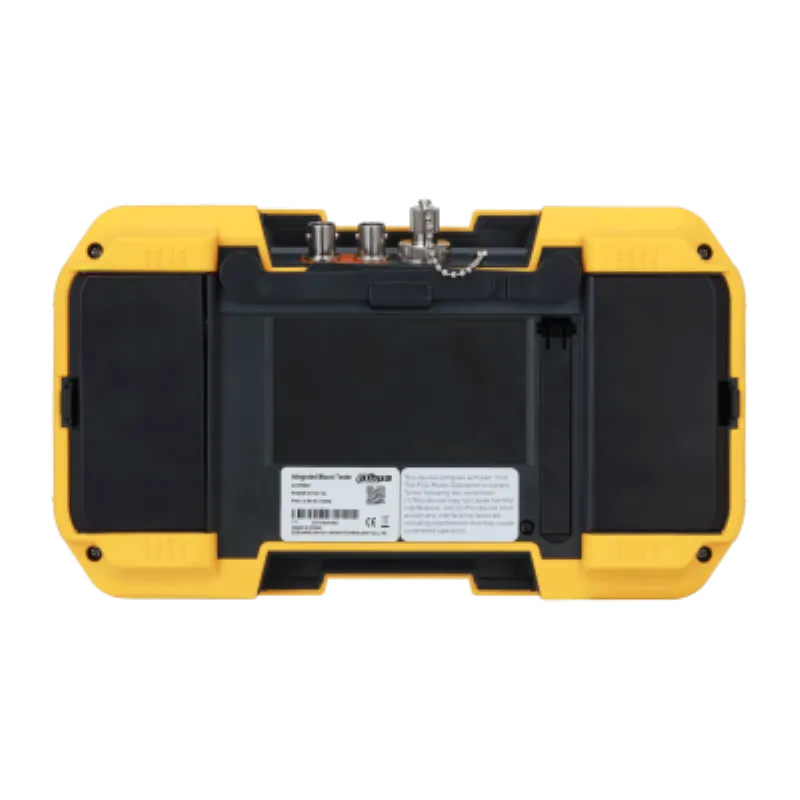

| Battery | Two battery compartments.
Each battery compartment can hold a dedicated lithium battery pack with a capacity of 18.5Wh. The combined working time is about 10 hours. (can operate on a single battery). |
| Certifications |
| Certifications | CE: EN 55032: 2015, EN 55032: 2017, EN 61000–3–2: 2014, EN 61000–3–3: 2013, EN 61010-1: 2010, EN 62321–1: 2013
FCC: FCC Parte 15 Subparte B: 2016 |
