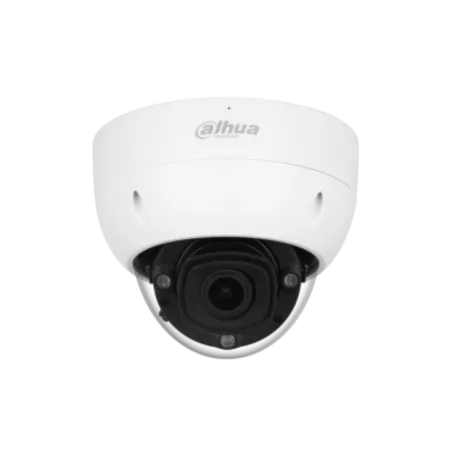

Camara Domo IP 4MP Varifocal IP67 IK10 Dahua DH-IPC-HDBW5442H-ZHE

Cámara

Sensor de imagen

CMOS de 1/1,8"

Máxima resolución

2688 (alto) × 1520 (vertical)

memoria de sólo lectura

4 GB

RAM

1 GB

Sistema de escaneo

Progresivo

Velocidad de obturación electrónica

Automático/Manual 1/3 s–1/100.000 s

Iluminación mínima

0,0006 lux a F1.2 (color, 30 IRE)
0,0003 lux a F1.2 (blanco y negro, 30 IRE)
0 lux (iluminador activado)

Relación señal/ruido

> 56 dB

Distancia de iluminación

Hasta 40 m (131,23 pies) (IR)

Control de encendido y apagado del iluminador

Auto; Zoomprio; Manual

Número de iluminador

3 (LED infrarrojo)

Ajuste del ángulo

Panorámica: 0°–355°
Inclinación: 0°–80°
Rotación: 0°–355°

Lente

Tipo de lente

varifocal motorizado

Montura de lente

φ14

Longitud focal

2,7 mm–12,0 mm

Apertura máxima

F1.2

Campo de visión

Alto: 114°–48°; Oeste: 59°–27°; Profundidad: 143°–56°

Iris Control

Auto

Tipo de control del iris

P-Iris

Distancia de enfoque cercana

1,75 m (5,74 pies)

Distancia DORI

Lente

Detectar

Observar

Reconocer

Identificar

EN

60,4 m (198,16 pies)

24,2 metros

(79,40 pies)

12,1 metros

(39,70 pies)

6,0 metros

(19,69 pies)

T

128,7 m (425,52 pies)

51,5 metros

(168,96 pies)

25,7 metros

(84,32 pies)

12,9 metros

(42,32 pies)

Inteligencia

IVS (Protección Perimetral)

Intrusión, cable trampa, movimiento rápido (las tres funciones permiten la clasificación y detección precisa de vehículos, animales y personas); detección de merodeo, aglomeración de personas y detección de estacionamiento. Compatible con modo de larga distancia. Autoaprendizaje: filtra falsas alarmas.

Detección inteligente de objetos

Smart abandoned object; smart missing object

SMD

SMD 3.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal,and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA

Yes

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People Counting

Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Smart Sound Detection

Yes

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

4 streams

Resolution

4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–16384 kbps; H.265: 12 kbps–11008 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

140 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520)resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

LDC

Yes

Audio

Built-in MIC

Yes, built-in dual Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register

Interoperability

ONVIF (Profile S/Profile G/Profile T/Profile M); CGI

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 1 TB); NAS

Browser

IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Security

Trusted execution; Digest; Security logs; WSSE; Account lockout; Syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14, UL 50E NEMA Type 4X (optional)

Port

RS-485

1 (baud rate range:1200 bps–115200 bps)

Audio Input

1 channel (terminal)

Audio Output

1 channel (terminal)

Alarm Input

3 channels in: wet contact, 5mA 3V–5V DC

Alarm Output

2 channels out: dry contact, 1,000mA 30V DC/500mA 50V AC

Analog Output

1 channel (CVBS output: built-in 2 pin (testing))

Power Output

12 VDC power output, max. current 165 mA, peak current 700 mA

Power

Power Supply

12 VDC/24 VAC/PoE+ (802.3at)/ePoE

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 4.1 W (12 VDC); 5.2 W (24 VAC); 5 W (PoE)
Max. (Focus+WDR+ Intelligence on+IR on): 12.9 W (12 VDC); 15.8 W (24 VAC); 15.9 W (PoE)
Heating: 3 W (12 VDC); 3.8 W (24 VAC); 3.9 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–95% (RH), non-condensing

Protection

IP67; IK10

Anti-corrosion Level

Moderate Protection (Only supported by -ATC model)

*Los productos cuentan con protección anticorrosiva de alta calidad, lo que los hace ideales para entornos con requisitos estándar de resistencia a la corrosión. Funcionan de forma fiable a una distancia de 2 km (1,24 mi) o superior en zonas costeras y en lugares expuestos a la lluvia ácida .

Estructura

Material de la carcasa

Metal

Dimensiones del producto

Φ158 mm × 129,1 mm (6,22" × Φ5,08")

Peso neto

1,1 kg (2,43 libras)

Peso bruto

1,6 kg (3,53 libras)
