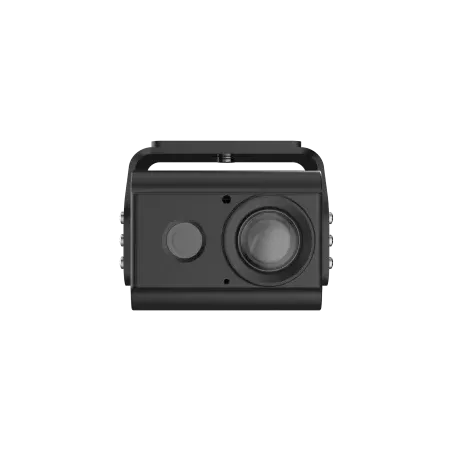

Camara 2MP Deteccion Punto Ciego Dahua DHI-DAE-CBS5210-H-CYN

Camera

IR On/Off Control

Automatic

Low electric level

Connect to the ground.

IR LEDs Number

1 (IR light)

IR Type

IR

Image sensor

1/2.8”CMOS

Electronic shutter

PAL: 1/25s–1/100, 000s NTSC: 1/30s–1/100, 000s

Lens angle

Vertical: -45°–45°

Effective Pixels

2MP

SNR

42dB

Fill Light Distance

20m

Max Resolution

1080P (1920 × 1080)

Minimum Illumination

0.02Lux/F2.0 30IRE, 0Lux IR on

WB

Auto/Manual

BLC

Support

Mirror

Support

WDR

DWDR

Day/Night Switch

ICR auto switch

Lens

Aperture Control

Fixed aperture

Min Photographic Distance

0.5m

Aperture

F1.9

Focal Length

2.0mm

Lens Mount

M12

Lens Type

Fixed focal

Field of view (FOV)

Horizontal: 143.2°; Vertical: 76.6°: Diagonal: 170.2°

Video

Frame rate

CVI PAL 1080P; 25fps, 720P@ 25fps; MJPEG: 1080P; 30fps, 720P@ 30fps

Gain control

Automatic

Resolution

1080P(1920×1080); 720P(1280×720)

Smart Illumination

Support

DORI distance

D: 49.7m; O: 19.9m; R: 9.9m; I: 5.0m

Video Format

PAL/NTSC

Video Type

CVI/TVI/AHD/CVBS

IR LED

Support

Image Adjustment

Color mode: standard, soft, vivid, warm and cold. Supports adjustments in between sharpness, brightness, contrast, saturation, gamma curve, 2D and 3D noise reduction.

Exposure Mode

Auto/manual/Regional exposure, Exposure Level: 0-15

Anti-flicker

Outdoor

Power

Power Supply

9V-16V DC

Power Consumption

< 5W

Port

Power

4-pin aviation port

Audio Input

Support

Environment

Storage temperature

-40°C to +60°C (-40°F to 140°F)

Operating Temperature

-40°C to +60°C (-40°F to 140°F)

Protection Grade

IP67

Operating Humidity

< 95% (non-condensing)

Structure

Packing Dimensions

155mm × 155mm × 135mm (6.10'' × 6.10'' ×5.31'')

Product Dimensions

90.0mm × 110.6mm × 65mm (3.54'' × 4.35'' ×2.56'')(with bracket)

Net Weight

0.372 kg (0.82 lb)

Casing Material

Metal
